Power BI Custom Visuals Class (Module 15 – Table Heatmap)

Table Heatmap

In this module you will learn how to use the Table Heatmap Power BI Custom Visual.  The Table Heatmap has the look and feel of a pivot table or matrix report.  However, instead of seeing traditional values in the table you actually see colors that represent your values instead.

Module 15 – Table Heatmap


Key Takeaways

  • In the Table Heatmap the color of the boxes is determined by the value in your measure.
  • Only 1 category field can be used, which will dynamically generate the number of columns based on the number of distinct values your field has.
  • The number and types of colors can be changed using some of the settings we’ll discuss below.

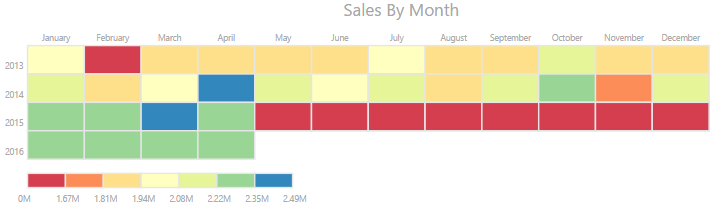

This shows a Table Heatmap with Month as the category column and individual fields 2013, 2014, 2015, 2016 in the Y axis.

  • Under the Format paintbrush there isn’t much available to customize the appearance of the Table Heatmap.
  • The one section specific to the Table Heatmap that you have available is found under the General section.
    • By changing the Colorbrewer property you are able to swap out the color palette being used
    • You can also use the Buckets setting to increase/decrease the number of colors that are used in the color palette you’ve selected.


  • There are many color palettes that you can use in the Colorbrewer property but unfortunately they’re not well documented. Here’s a list of values that you could use in this property:
    • YlGn,
    • YlGnBu,
    • GnBu,
    • BuGn,
    • PuBuGn,
    • PuBu,
    • BuPu,
    • RdPu,
    • PuRd,
    • OrRd,
    • YlOrRd,
    • YlOrBr,
    • Purples, Blues, Greens, Oranges, Reds, Greys,
    • PuOr,
    • BrBG,
    • PRGn,
    • PiYG,
    • RdBu,
    • RdGy,
    • RdYlBu,
    • Spectral, RdYlGn,
    • Paired, Pastel1, Set1, Set2, Set
  • Experiment with these and see which makes most sense for your solution
  • In addition to these properties you have a set of settings that appears on every visual to adjust the background color, add a border around the visual and lock the aspect ratio.
